Re-Transfer Card Printer

Established, versatile retransfer card printer

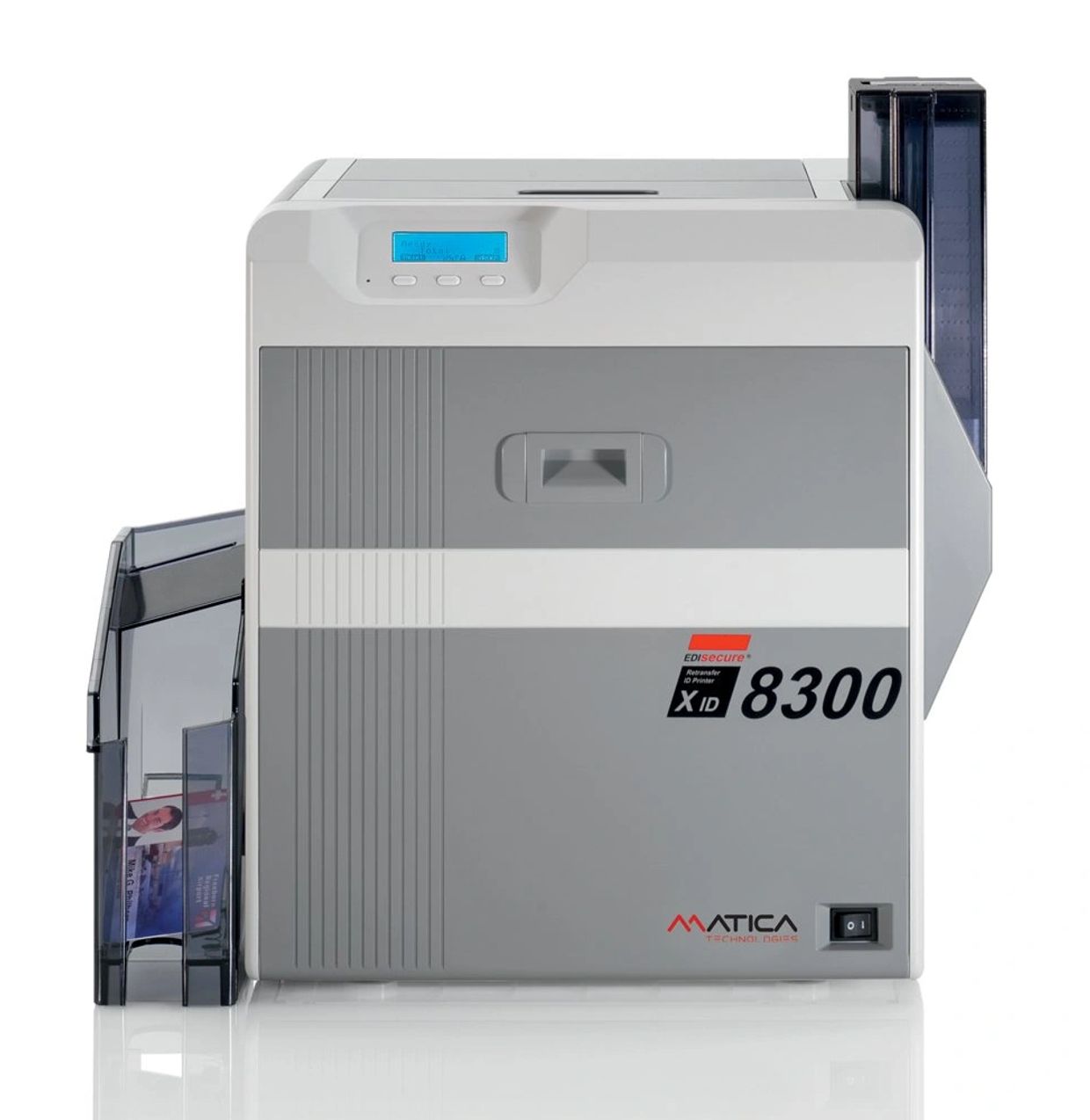

Matica’s XID8300 is a versatile, durable and reliable printer with an established and renowned print engine. Its retransfer printing technology offers consistent, crystal clear printing right over the edge of the card. This indirect printing method also enables the XID8300 to print on variable surfaces found on contactless/contact chip cards and on multiple materials including PC (polycarbonate), PET and ABS cards, in addition to PVC.
Matica’s XID8300 is available as a single or dual-sided printer with a bend remedy option to ensure card flatness. Its durability backed with a 3 year warranty and its high capacity ribbons (1000 images) mean it is well suited to mid to high volume card issuance applications, including access control cards or student ID cards.

KEY STRENGTH:
300 x 300dpi printing
Robust and durable print engine
Consistent print quality on multiple card surfaces/materials
High capacity consumables (1000 images)
Up to 120 cards per hour
Scalable design and compact footprint
USB and Ethernet

IDEAL FOR:
Mid to high volume secure ID card programs
Corporate cards
Access control cards
Campus / student cards

OPTIONAL UPGRADES:
Dual-sided printing
Bend remedy for card flatness
Inline magnetic stripe encoding
Inline contact chip and contactless smart card encoding
UV security printing
Inline single or dual-sided lamination

SECURE YOUR ID PROJECT:
Additional covert security printing can be added to the card using the UV ribbon option. To further reduce the risk of card fraud, the XID8300 offers a range of other card/data security options including IPSEC for encrypted data transfer and magnetic stripe, contact chip and contactless encoding options. The printer can also be secured with a Kensington lock.

TECHNICAL SPECIFICATION:

Layout:
Method
Dye sublimation
Mode
Retransfer
Resolution
300dpi
Speed
Up to 120 cph (Single-sided)

Encoding:
Magnetic stripe
ISO 7811 HiCo/LoCo
(factory fit only)

Smart card / contactless
Contact PC/SC, EMV compliant.
Smart contact: ISO 7816-2, Contactless: ISO14443A, B, ISO15693, MIFARE®, DESFire®, HID iClass®

Cards:
Format and materials
ISO CR80
PVC, PVC-C, PET-F, PET-G, ABS, PC
Card thickness
0.25 mm – 1.02 mm
(10 mil – 40 mil)
(hopper adjustment required)
Input stacker
200 cards (0.76mm)
Output stacker
100 cards (0.76mm)

Connectivity:
Connectivity
Ethernet
USB 2.0

Platform:

Printer dimensions (L x W x H)
343 x 322 x 360 mm
(13.5″ x 12.6″ x 14.1″)
Weight
13.9 kg
(30.6 lbs)
(excluding optional built-in items)
