Re-Transfer Card Printer

The entry level Retransfer Printer XID8100 is the perfect solution for the regular day-to-day demand to personalize of all kind of ID Cards.
Due to the retransfer printing technology, the printer can print over-the-edge without any limitations to the card design and graphic layout. The proven modular concept enables the printer to follow upgrade demands at any time. As a standard, the printer is coming in a single side version, but various additional modules, such as flipper module, bend remedy module as well as a selection of encoders can be added on demand. A wide choice of In-Line lamination modules to further protect the card against any physical impact or to make it even more secure, can be attached to the printer.

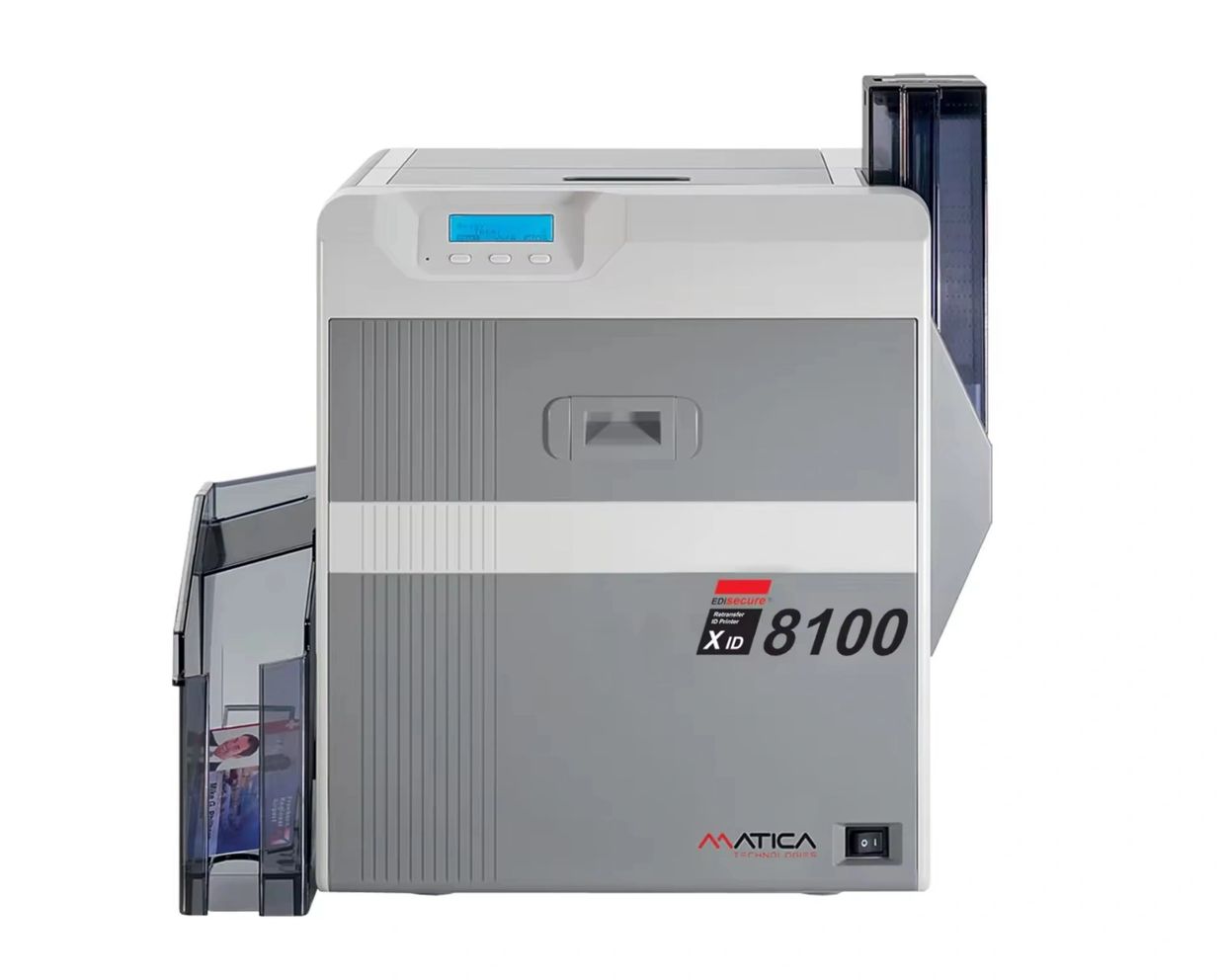

Matica XID-8100


The entry level Retransfer Printer XID8100 is the perfect solution for the regular day-to-day demand to personalize of all kind of ID Cards.
Due to the retransfer printing technology, the printer can print over-the-edge without any limitations to the card design and graphic layout. The proven modular concept enables the printer to follow upgrade demands at any time. As a standard, the printer is coming in a single side version, but various additional modules, such as flipper module, bend remedy module as well as a selection of encoders can be added on demand. A wide choice of In-Line lamination modules to further protect the card against any physical impact or to make it even more secure, can be attached to the printer.


KEY STRENGTH:

The retransfer technology allows the printer to print on all kind of card materials
All necessary information about the printer and its status are shown on the LCD display
The print engine is based on a metal frame chassis, hence it is a very solid and precise printing module
Auto clearing notification
4 Panel Color Ribbon (YMCK): 1,000 cards/ribbon
XID SRT Retransfer Film:1,000 Cards/Film

BEST FOR:
Medium to high volume applications for corporations, organizations, hospitals, health control, time and attendance, and loyalty cards, facilities and universities, for photo IDs, access


TECHNICAL SPECIFICATION:

Print Method:
Dye-sublimation sretransfer
Print Mode:
Single- or double-sided (optional) over-the-edge retransfer printing
Print Speed:
Up to 120 cards per hour
Print Resolution:
300 dpi
Print thead:
Lifetime warranty (using Matica materials)
Card Types:
PVC, Composite PVC, ABS, PET and Polycarbonate Cards of ISO ID -1/CR-80 size, 85.60 x 53.98 mm Petix
Card Thickness:
0.25 - 1.02 mm (hopper adjustment required)
Input Hopper Capacity:
200 cards (0.76 mm)
Output Hopper Capacity:
100 cards (0.76 mm)
Interface:
USB 2.0 and Ethernet
Operating System Support:
Windows 2000, Windows XP, Windows Vista, Windows 7. Window 8
Printer Dimensions:
343 x 322 x 360 mm (WxDxH)
Weight:
13.9 kg (excluding optional built-in items)
Power Supply:
100/120 V and 220/240 V, 50/60 Hz FCC, CE, UL, GOST-R, and CCC approved
Operating Environment:
15°C to30°C, 35% to 70% non-condensing humidity
